Vuzix M400™ Smart Glasses
472T00027
Xtreme Kit

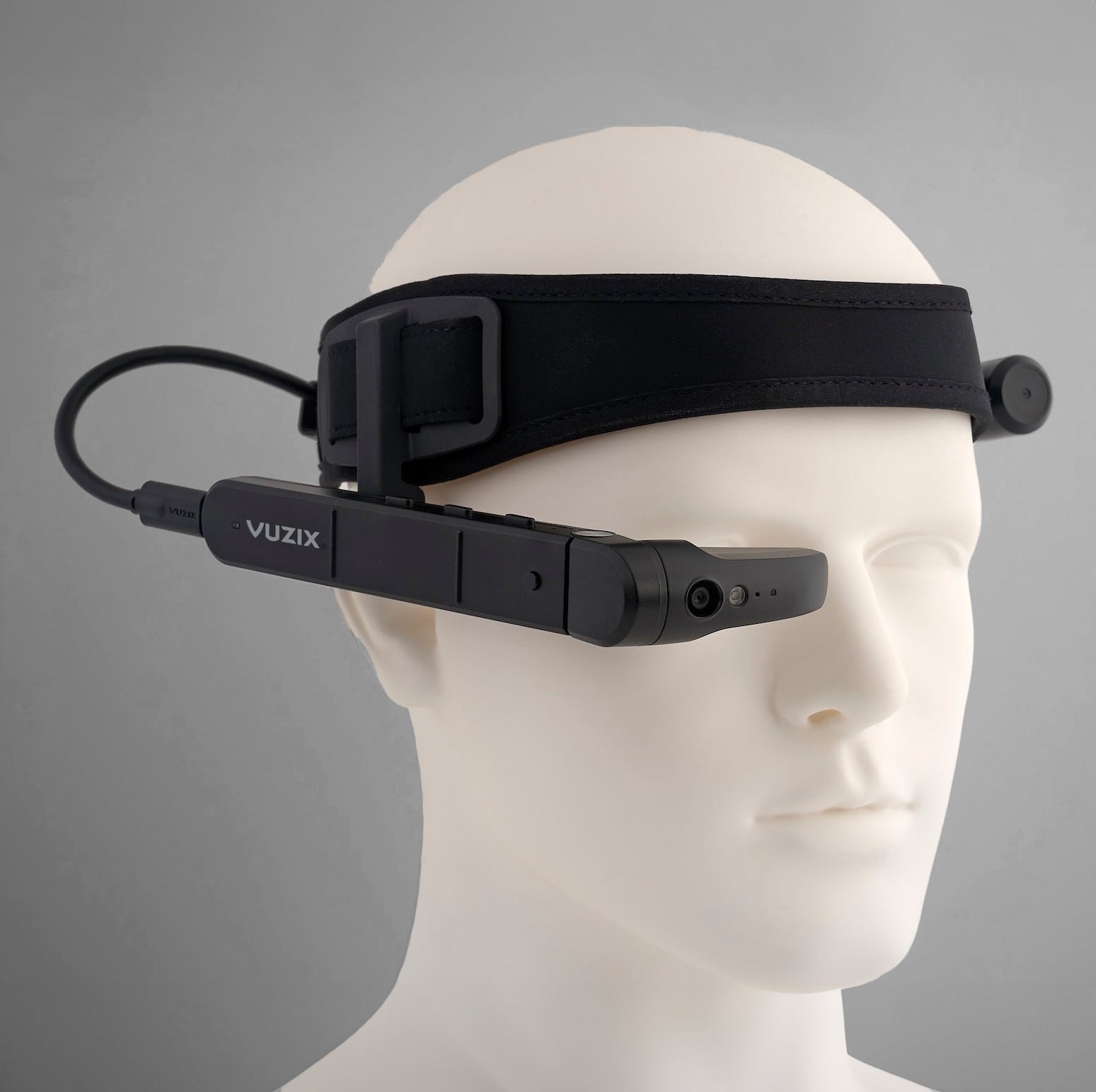

The M400 Xtreme kit is optimal for situations where weather or temperature are a factor. It combines our lightweight, durable, and long lasting 3200 mAh Xtreme Weather battery that’s IP67 rated, along with a comfortable headband. Remote field service assignments and all-day cold storage warehouse duty are excellent use cases for the M400 Xtreme kit.
- M400 Smart Glasses (IP67 certified, -20℃/-4℉ to 45℃/113℉ rated)
- 3200 mAh Xtreme Weather battery (long lasting, IP67 certified, -20℃/-4℉ to 45℃/113℉ rated)
- All-day Comfort Headband

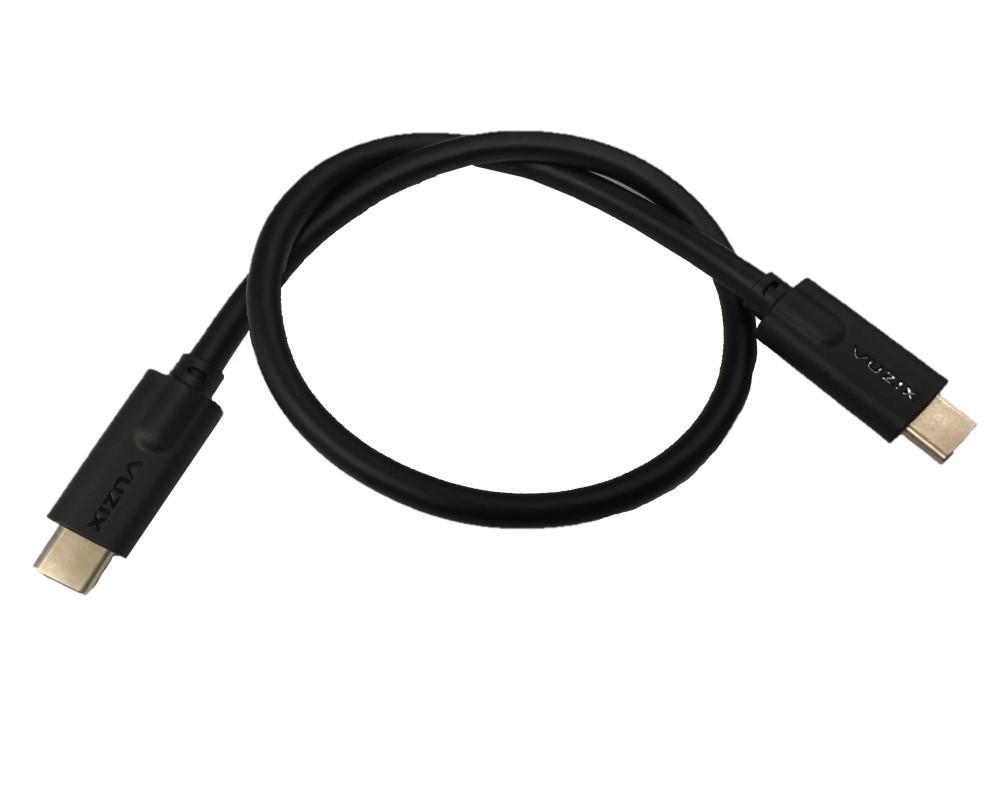

- M400 power cable
- USB charging cable
- Carrying case
- User manual
- Mounting guide
- One-year manufacturer’s warranty
Country Availability
- Armenia
- Bangladesh
- Brazil
- Canada
- Chile
- Colombia
- Costa Rica
- European Union (CE)
- Israel
- Kazakhstan
- Kyrgyzstan
- Malaysia
- Mexico
- Nepal
- Pakistan
- Panama
- Peru
- Philippines
- Singapore
- Switzerland
- Turkey
- United Kingdom
- United States
- US Territories
- Vietnam

Vuzix M400™ Smart Glasses
Certified for the Toughest Jobs
Vuzix M400 Smart Glasses Use Cases

TELECONFERENCING
These days, teleconferencing is more vital than ever to keep workers connected and safe.
Step into the future with our travel-free, hands-free teleconferencing.
Vuzix M400 price is competitive and provides a cost-effective alternative to in-person meetings. Not only does it work with top conferencing platforms such as Zoom, WebEx, and MS Teams, its long battery life ensures that you’ll make it through your meeting with power to spare.

OPERATIONS
With our hands-free, heads-up Vuzix M400, you won’t be weighed down by tablets or clipboards. You can access instructions, diagrams, and videos via assisted reality (AR) with visual overlays and audio; document steps and detect issues; and livestream remote support — all hands-free.
Vuzix M400 smart glasses connect to ERP systems, letting you keep your teams aligned and up to date.
Last, Vuzix M400 battery life is second to none, so you can save time on swapping out and recharging batteries.

TELEMEDICINE
Not only does the Vuzix M400 support HIPAA-compliant usage, the Longevity Series is IP67 rated and can be sanitized with conventional sterilization such as alcohol wipes.
Best of all, the battery ensures that they’ll last when you need them most: Our smart glasses are currently worn by medical professionals during surgeries for 16+ hours straight.
Technical Specifications
OPTICS
- Display resolution: nHD color display
- Display type: OLED
- Aspect ratio: 16:9
- Field of view (diagonal):
16.8°, equivalent to a 5 in. mobile device screen seen at 17 inches - Brightness: > 2000 nits
- Contrast: > 10,000:1
- 24-bit color with true black
- Supports left or right eye use
POWER
- On-board battery to enable hot swapping for zero down-time
CONTROLS
- 4 control buttons
- Voice control
- 2 axis touchpad with multi-finger support
CONNECTIVITY
- USB 3.1 Gen 2 on USB Type-C
- Wi-Fi 2.4/5Ghz 802.11 a/b/g/n/ac
- Bluetooth 5.0 BR/EDR/LE
SYSTEM
- 8 Core 2.52Ghz Qualcomm XR1
- 6GB LPDDR4 RAM
- 64GB internal flash memory
- Upgradeable to Android 13 OS
- OS and apps OTA upgradeable
- MDM available from multiple partners
AUDIO
- Integrated speaker (up to 97db output)
- Triple noise-canceling microphones
- Bluetooth audio: HSP/A2DP
Camera
- Up to 13-megapixel stills
- Streaming video at 1080p, 60fps
- Improved auto-focus (PDAF)
- LED flash/scene illumination
- Barcode scanning
Integrated Head Tracking
- 3-degree of freedom head tracking
- 3 axis gyro
- 3 axis accelerometer
- 3 axis mag/integrated compass
Environment
- Operating temperature -20ºC to 50ºC
- Operating humidity 0-95% RH
- Storage temperature -30-70ºC per MIL-STD-810H
- Storage humidity 0-95% RH
- IP67 rated protection against water and dust
Supported Languages
- English
- Spanish
- French
- German
- Mandarin- Simplified Script
- Mandarin- Traditional Script
- Cantonese- Traditional Script
- Japanese
- Arabic
- Bulgarian
- Czech
- Danish
- Dutch
- Farsi
- Finnish
- Greek
- Hebrew
- Hindi
- Hungarian
- Italian
- Indonesian
- Korean
- Norwegian
- Polish
- Portuguese
- Russian
- Swedish
- Thai
- Turkish
Battery
- 3200mAh Xtreme Weather Power Bank
- IP67 rated protection against water and dust
- Rated -20ºC to 45ºC (-4°F to 113°F)
GPS
- GPS/GLONASS
Mounting
- Vuzix All-Day Comfort Headband with Universal Rail
Certifications
- Drop safe to 2 meters
- IEC6060-1-1-2:2014 Medical Device Safety and Performance certified
- ISO 14644-1 Class 2 Clean Room rating
